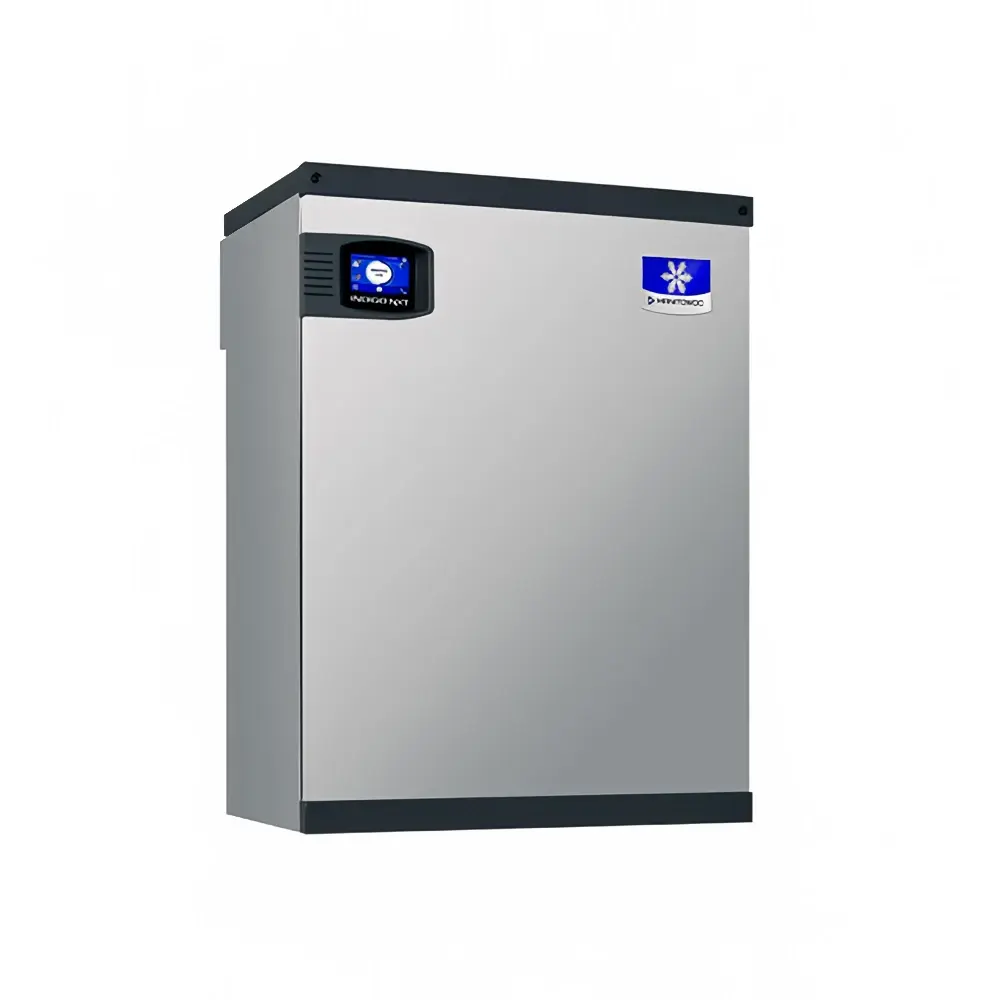

Manitowoc Ice IBF0820C 22" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 825 lb/24 hr, Remoted Cooled, 115v/1ph

Protected with a DuraTech™ clear coat, the Manitowoc Ice IBF0820C ice machine head resists marks from fingerprints, rust, and scratches. Measuring just 22 inches wide, it’s designed to fit into small spaces and produce 825 pounds of ice per day under favorable conditions. It’s programmable, so users can control the amount of ice being produced at different times of day.

The Manitowoc Ice IBF0820C half cube ice machine head has an air-cooled system that uses less water than a water-cooled system and works with a remote compressor to reduce heat and noise in the dining area. For servicing, it’s built with a removable panel that lifts off to enable access to components within. Some parts are enhanced with an antimicrobial treatment, and the water trough, curtains, sensing probe, and distribution tube are all removable to ease cleanup.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT™ QuietQube series

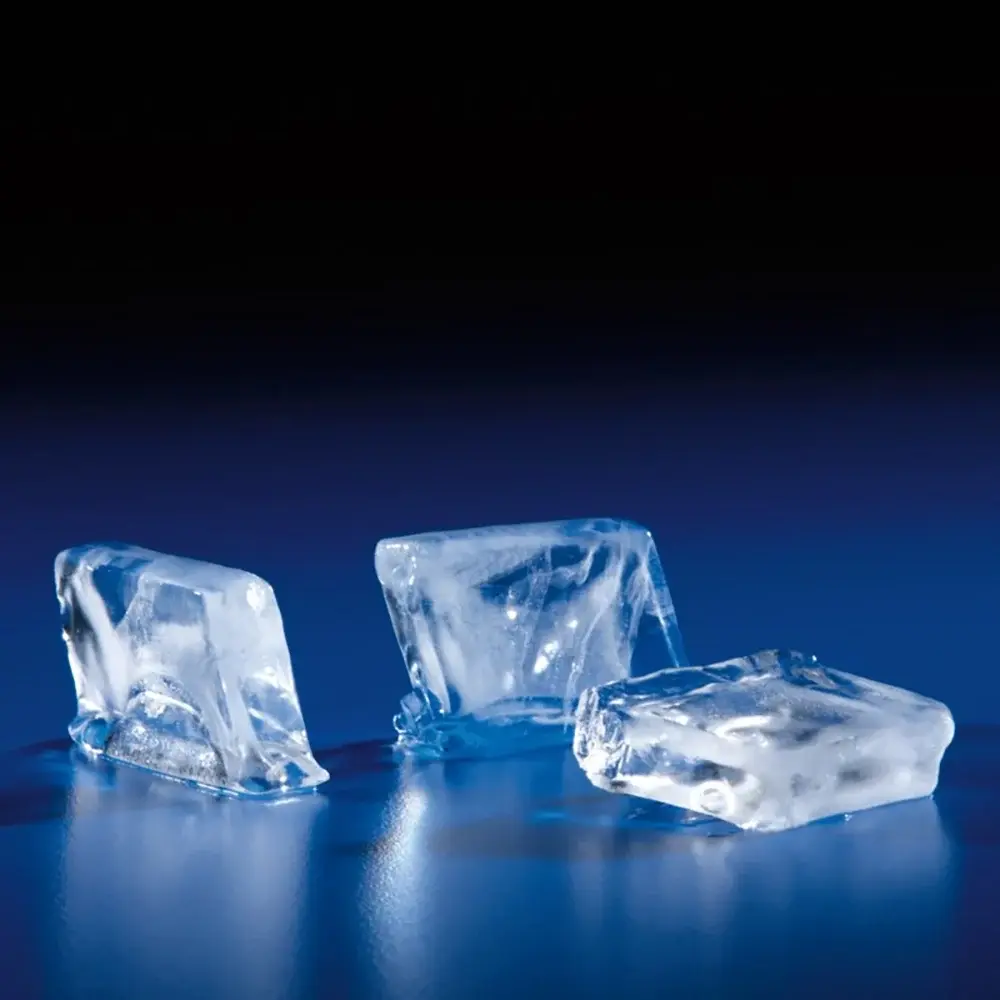

• Half-dice cube style ice

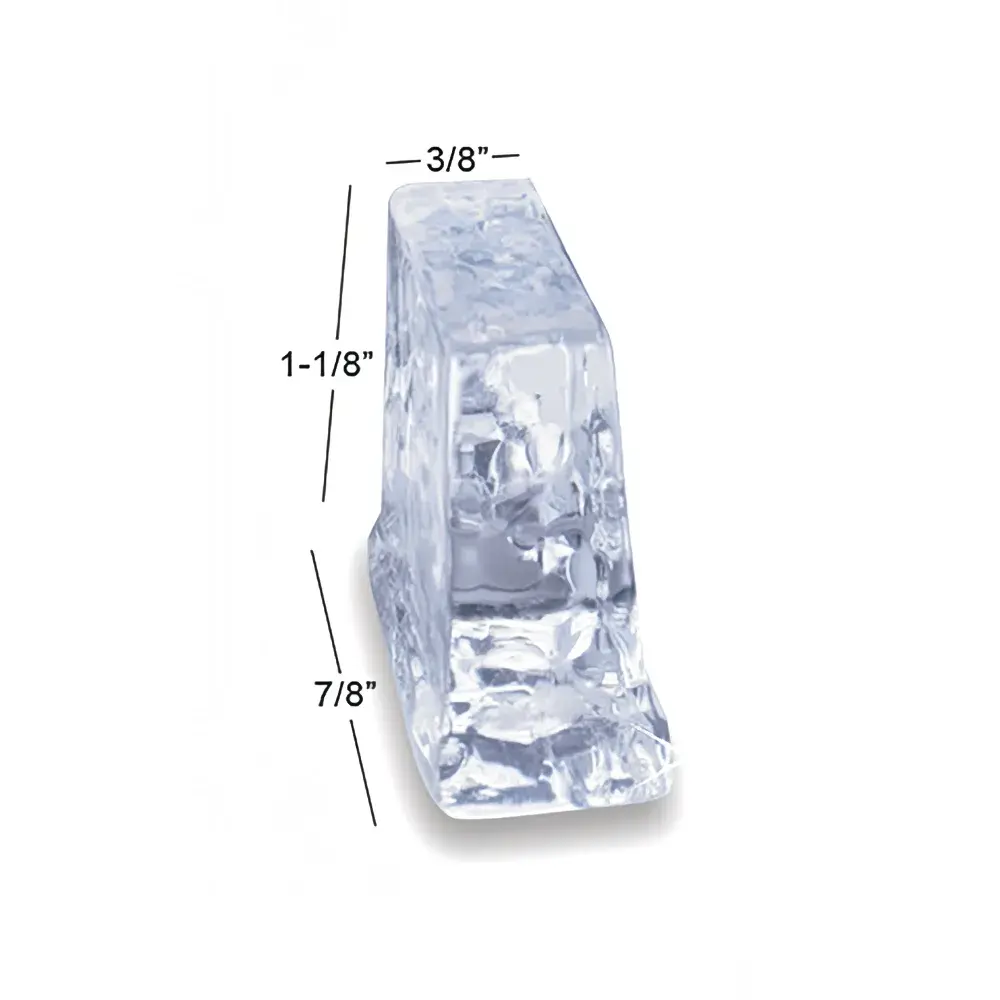

• Half cube size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• 825-lb. maximum daily ice production
• 728-lb. AHRI-certified daily ice production
• Compact, space-saving design is only 22 in. wide
• DuraTech clear coat protects stainless finish from corrosion and fingerprints
• easyTouch® icon-based display streamlines operation
• CVD® technology improves cooling and reduces maintenance
• Programmable function controls production
• Lift-off panel enables component access
• Removable water trough, sensing probes, curtains, and distribution tube simplify cleaning
• AlphaSan® antimicrobial treatment enhances select components
• Intelligent diagnostics monitor equipment performance and provide feedback
• Acoustical ice-sensing probe
• Quiet operation improves ambiance

Refrigeration and Condenser Requirements

• Air-cooled system
• Remote condenser
• 14,800-BTU maximum heat transfer capacity
• R410A refrigerant
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Dimensions & Utilities

• 22 in. W x 14 in. D x 30.5 in. H
• 12.5 A, 4.88 kW, 1.5 HP
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IBF0820C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker Beverage, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 22"W x 14"D x 26-1/2"H, production capacity up to 825 lb/24 hours at 70°/50° (728 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-size dice cubes, CVD Technology, NSF, cULus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires an external cooling system (sold separately)
