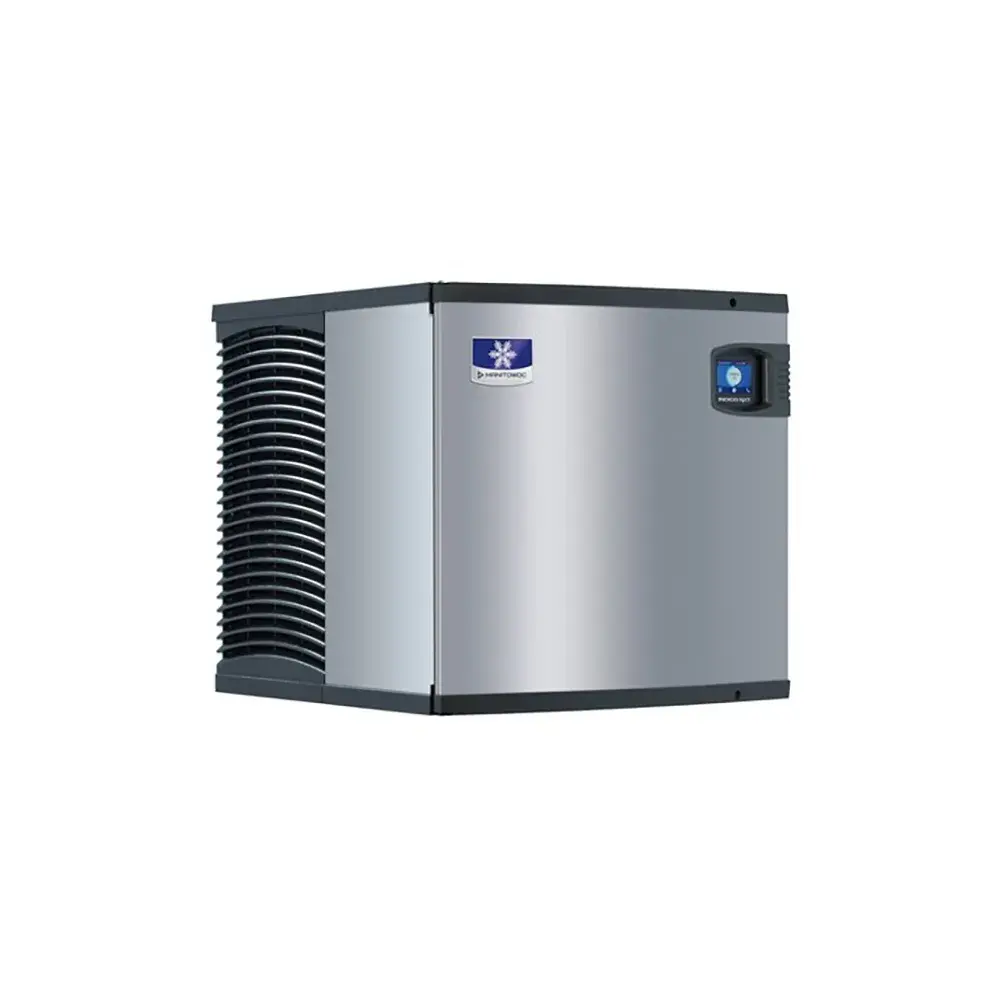

Manitowoc Ice IDT0420W 22" Indigo NXT™ Full Cube Ice Machine Head - 454 lb/24 hr, Water Cooled, 115v/1ph

The Manitowoc Ice IDT-0420W Indigo NXT™ ice machine head can make 454 pounds of ice in a 24-hour period. Ice production can be adjusted and programmed based on volume and time, and ice thickness is measured by an acoustical sensing probe to ensure each sheet is thick enough before it drops into a bin that is sold separately. The unit has an easyTouch® display, performs 24-hour preventive maintenance, and gives daily feedback. Durable for high-volume use, it’s coated in DuraTech® to resist corrosion and hide fingerprints and dirt.

An active sense mechanism is used in the Manitowoc IDT-0420W water-cooled ice machine head to ensure ice is harvested properly despite surrounding environmental factors. Working in tandem with the acoustical sensing probe, it gauges how much ice is being produced. This machine has a 22-inch-wide by 241⁄2-inch-deep by 211⁄2-inch-high frame to securely fit on top of the bin without taking up too much kitchen space.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

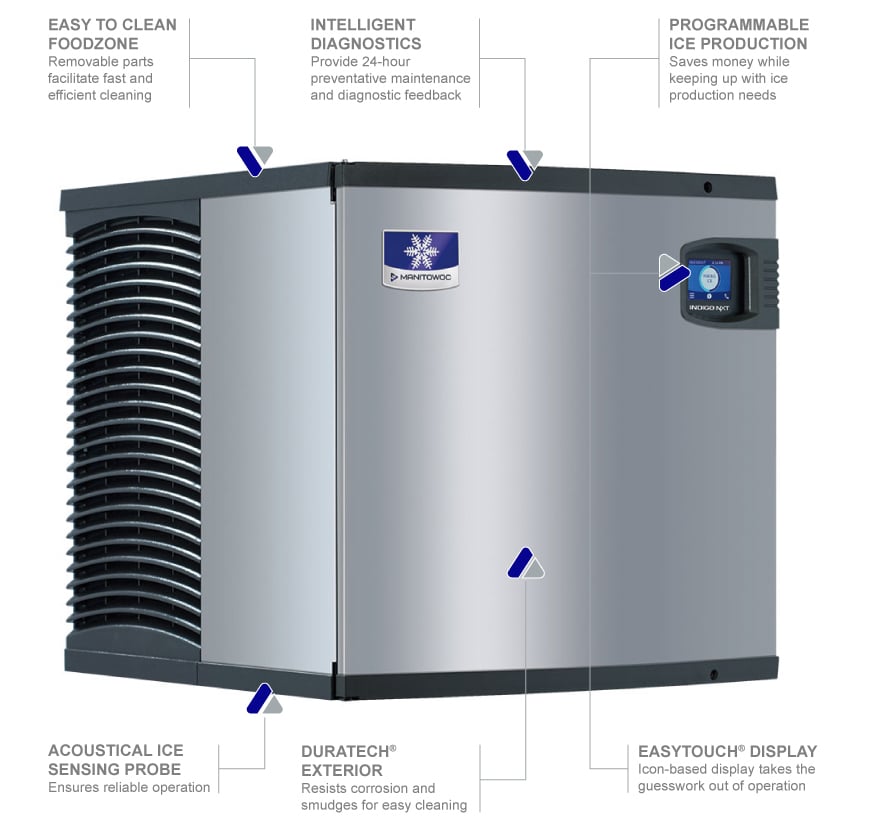

• Part of the Indigo NXT™ series
• 454-lb. maximum daily ice production
• 400-lb. AHRI certified daily ice production
• Ice cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
• Water cooled
• Ice production is programmable based on volume and time of day
• Acoustical ice-sensing probe ensures consistent ice thickness

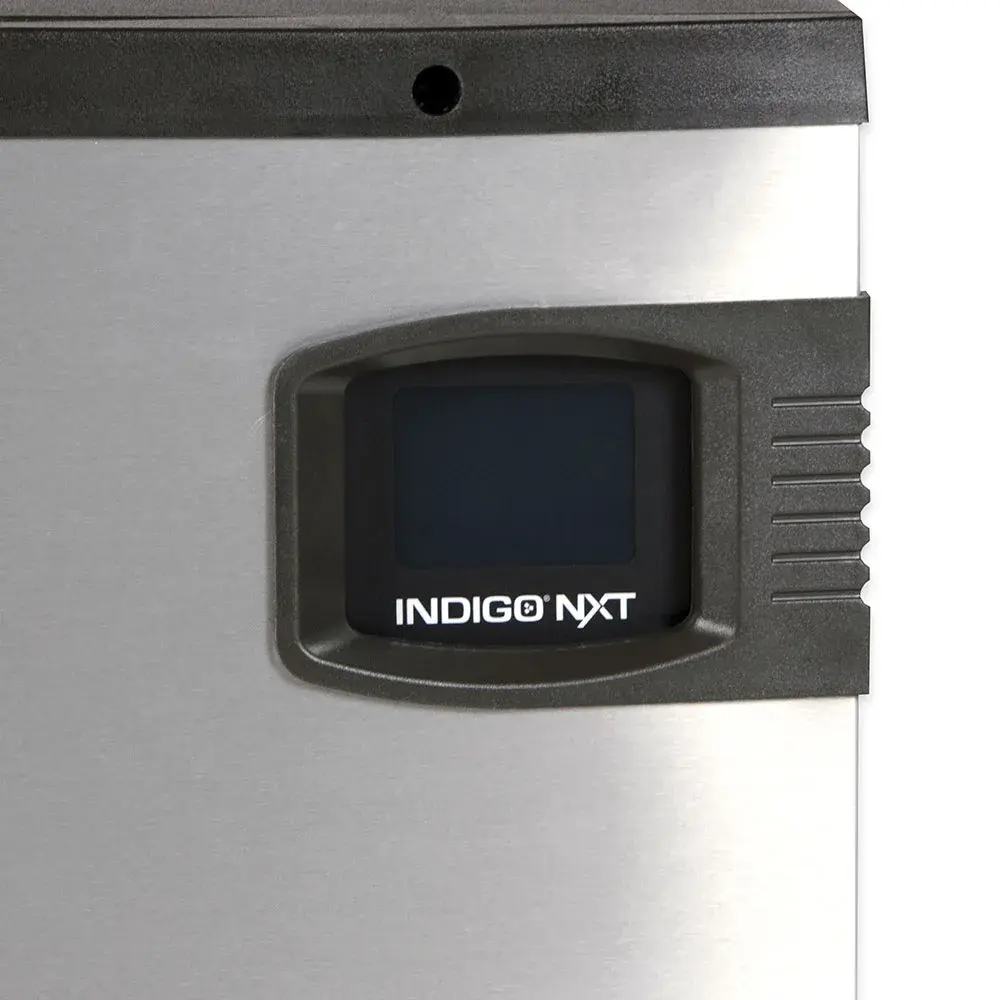

• Icon-based easyTouch display is simple to operate
• 24-hr. preventive maintenance and daily feedback
• Food zone is accessible through the front swing-out door
• Water trough, distribution tube, curtain, water probe, and water pump can be removed for cleaning
• AlphaSan® antimicrobial agent is built into some of the components to slow bacterial growth
• Clear DuraTech coating on the stainless steel exterior resists corrosion and hides fingerprints
• Uses R410A refrigerant
• Ice bin sold separately
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 psi
• 3,800-BTU heat transfer capacity

Dimensions & Utilities

• 22 in. W x 241⁄2 in. D x 211⁄2 in. H
• 10.6 A, 5.6kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0420W within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 454 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

This unit requires a second supply of water for cooling
