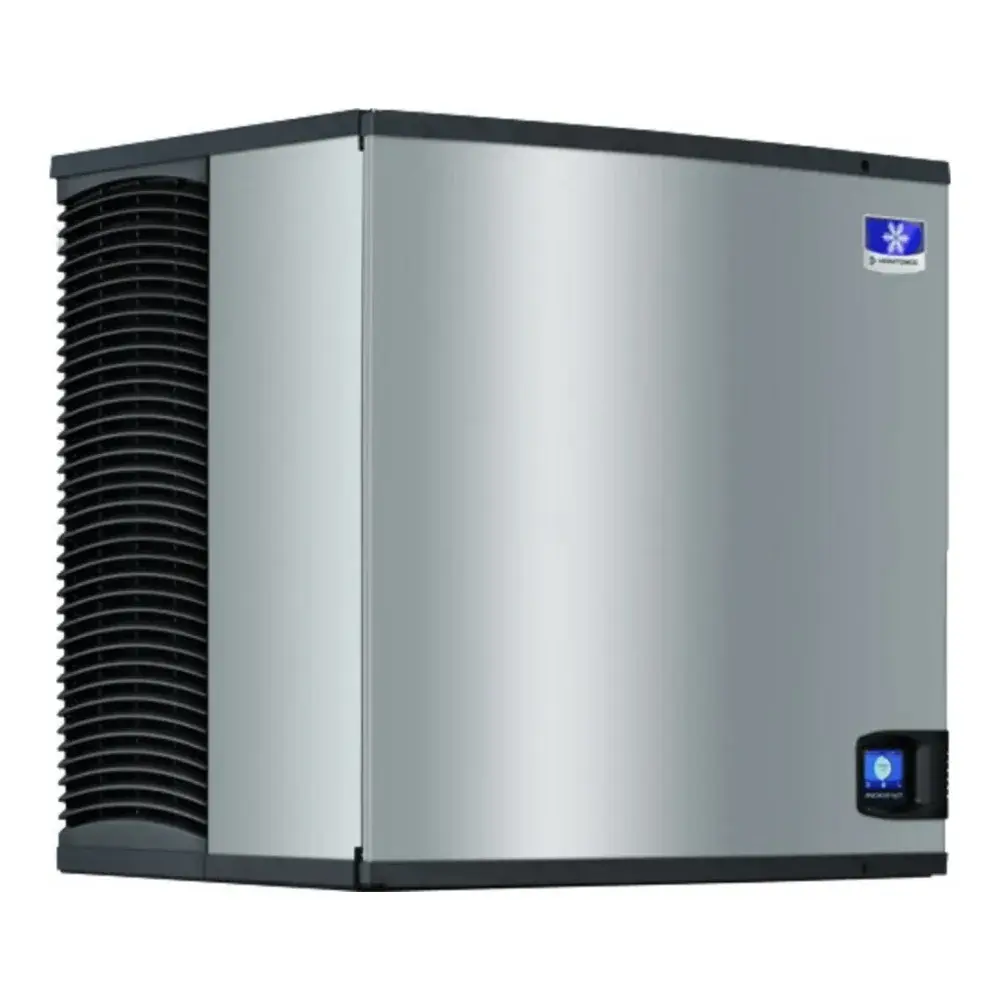

Manitowoc Ice IYF0900C 30" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 816 lb/24 hr, Remote Cooled, 115v/1ph

Manitowoc Ice IYF0900C Description

The Manitowoc IYF0900C Indigo NXT™ QuietQube® ice machine head has a DuraTech™ coating on its corrosion-resistant steel exterior to hide fingerprints and dirt. Preventive maintenance diagnostics run every 24 hours to ensure the machine is working properly, and operating statuses and cleaning reminders are displayed on the easyTouch® panel. An ice probe measures ice thickness before it drops into the bin, and ice production can be adjusted based on a timer or volume in the bin. Overall, it can produce 714 to 816 pounds of half-dice ice every 24 hours.

Designed to fit on top of a D570 storage bin, the Manitowoc IYF0900C ice maker head is 30 inches wide by 24.5 inches deep by 26.5 inches high. Some components within the foodzone, such as the water trough, distribution tube, curtain, and sensing probes, are removable for in-depth interior cleaning, and they're easily accessible with the swing-out hinged front door. AlphaSan® antimicrobial agent is used on some key components to slow bacterial growth between cleanings to ensure a sanitary production space.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT QuietQube series
• Remote, air-cooled design (condenser sold separately)
• Maximum daily production: 816 lbs. per 24 hours
• AHRI-certified production: 714 lbs. per 24 hours
• Ice cube dimensions: 0.38 in. x 1.13 in. x 0.88 in.
• 24-hour preventive maintenance diagnostics
• Probe measures ice thickness
• Operating status and cleaning reminders on easyTouch display
• Timer or volume-adjustable ice production
• Built-in AlphaSan antimicrobial agent
• Fingerprint-resistant DuraTech exterior coating
• Uses a Cool Vapor Defrost® (CVD) condensing unit (sold separately) and is not compatible with other condenser types
• Ice bin sold separately
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Dimensions & Utilities

• 30 in. W x 24.5 in. D x 26.5 in. H
• 1.1 A, 5.38 kW
• 115 V/60 Hz/1 ph

Product Features

Best for venues that need large-scale ice production paired with separate bin flexibility, such as banquet halls, stadiums, and hotels with high drink service demands.

*Free shipping on Manitowoc Ice IYF0900C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 816 lb/24 hours at 70°/50° (714 AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, CVD Technology, NSF, cULus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires an external cooling system (sold separately)
