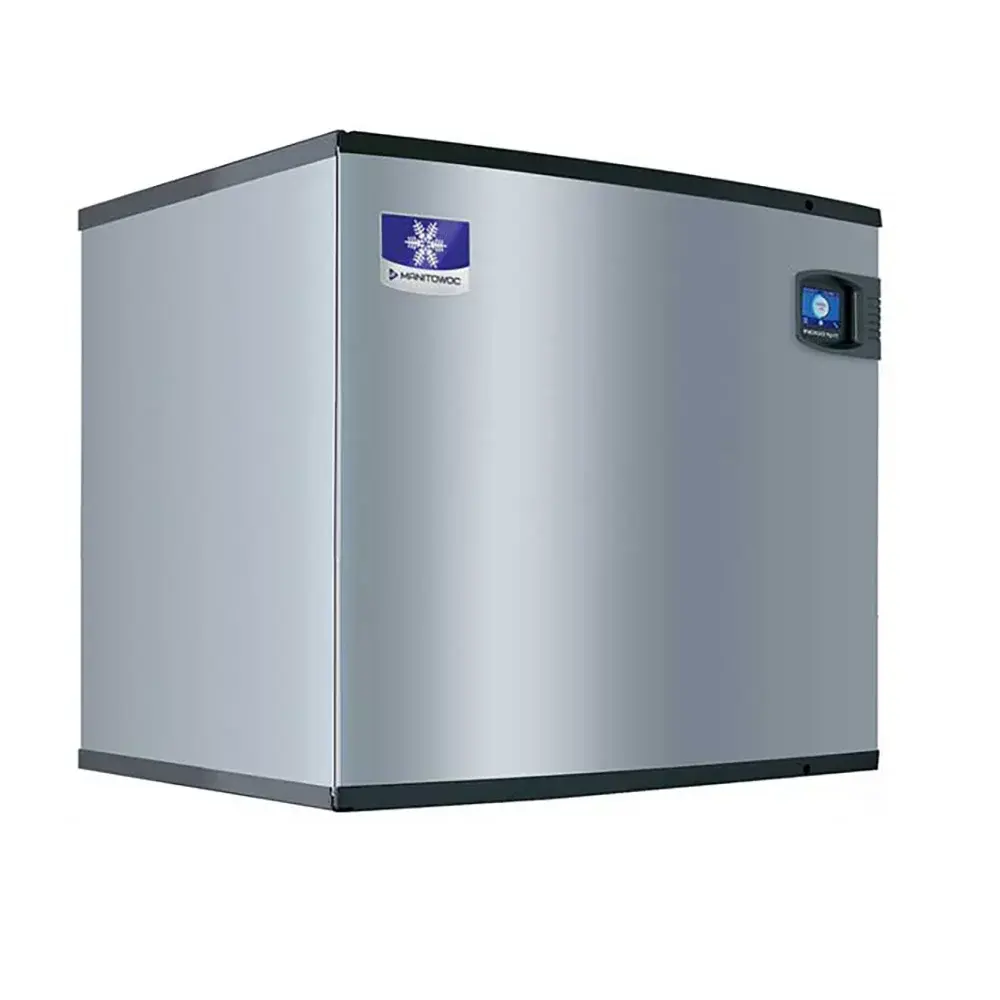

Manitowoc Ice IYF1400C 30" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 1425 lb/24 hr, Remote Cooled, 115v/1ph

The Manitowoc Ice IYF1400C 161 Indigo® NXT™ QuietQube® ice maker provides quiet operation when paired with the Manitowoc Ice CVDF1400 remote condensing unit. Depending on ambient and incoming water temperatures, this unit can produce between 1,230 and 1,425 pounds of half-cube ice. Its cabinet is constructed of corrosion-resistant DuraTech® material, with a clear coat that conceals fingerprints and dirt. Continuous diagnostics provide the operator with maintenance feedback and cleaning requirements. This ice maker can be programmed to produce ice for a certain period of time or until it has produced a specific volume.

To streamline management, this Manitowoc Ice IYF1400C 161 ice maker head features an easyTouch® display that highlights operations, diagnostic feedback, and temperature controls. For general upkeep, the foodzone's water trough, distribution tube, splash guard, water probe, and water pump can be removed when the front door is opened. Between cleanings, AlphaSan® antimicrobial technology helps reduce bacterial growth to maintain a sanitary production space. Overall, the unit is 30 inches wide by 241⁄2 inches deep by 25 inches high.

Product Details

• Part of the Indigo NXT QuietQube series
• Maximum daily ice production: 1,425 lbs.
• AHRI-certified daily ice production: 1,230 lbs.
• Half-cube ice dimensions: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• Continuous diagnostics for maintenance and cleaning
• Acoustical ice-sensing probe measures ice thickness
• easyTouch touchscreen display
• Antimicrobial agent in key internal components
• Programmable ice production by time of day or volume
• Removable foodzone components streamline cleaning
• DuraTech exterior resists corrosion, fingerprints, and dirt
• Operates with Cool Vapor Defrost® technology
• Requires remote condensing unit and bin (sold separately)
• Compatible with the Manitowoc Ice CVDF1400 261A air-cooled remote condensing unit, Manitowoc Ice LB1760 ice bin, and the Manitowoc Ice D970 ice bin
• Required ambient air temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required incoming water pressure range: 20-80 PSI

Dimensions & Utilities

• 30 in. W x 241⁄2 in. D x 25 in. H
• 1.1 A, 4.4 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYF1400C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 30"W x 24-1/2"D x 25"H, production capacity up to 1425 lb/24 hours at 70°/50° (1230 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, CVD Technology, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires an external cooling system (sold separately)
