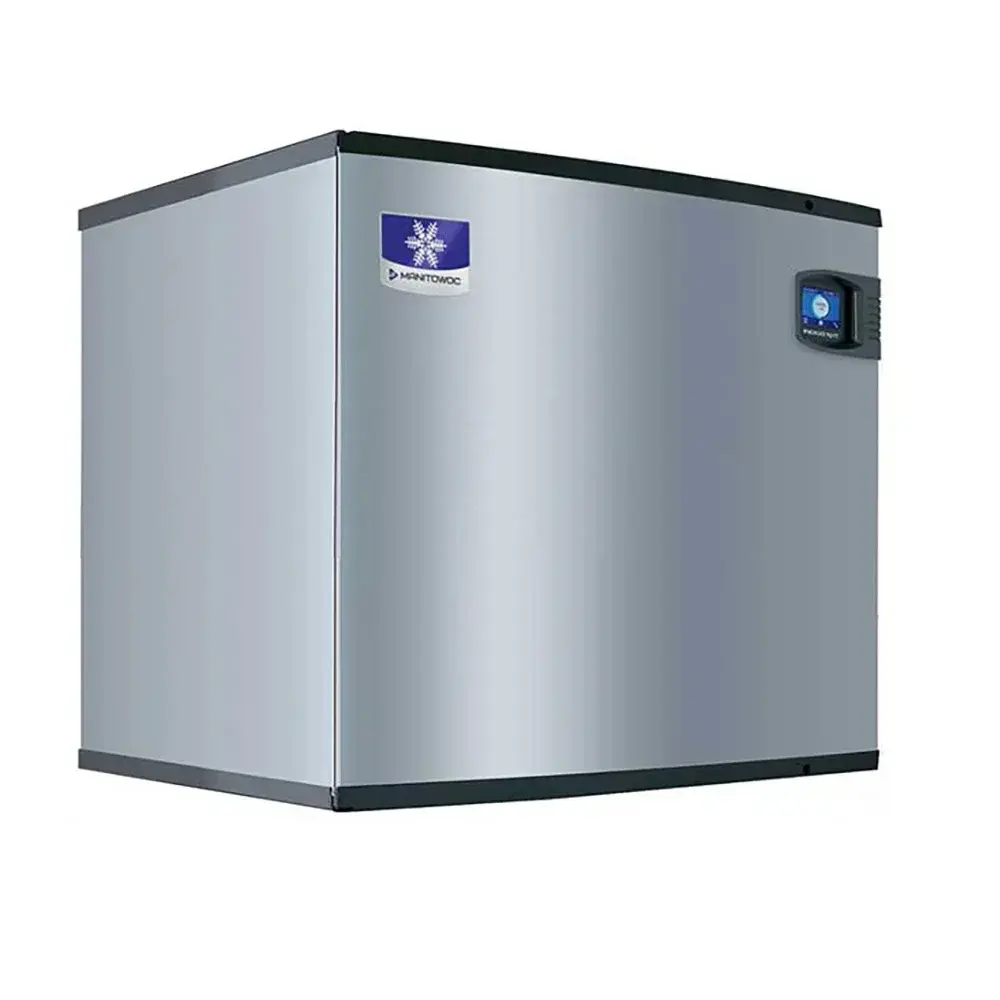

Manitowoc Ice IYF1800C 30" Indigo NXT™ QuietQube Half Cube Ice Machine Head - 1660 lb/24 hr, Remote Cooled, 115v/1ph

Because of its remote design, the Manitowoc Ice IYF1800C 161A Indigo® NXT™ QuietQube® ice machine head requires a separate purchase of a Cool Vapor Defrost® (CVD) condensing unit, interconnecting refrigerant lines, and an ice storage bin. This head can produce between 1,440 and 1,660 pounds of half-cube ice in 24 hours, depending on ambient air and incoming water temperatures. Acoustical ice-sensing probes and the active-sense system monitor ice production to ensure consistently sized cubes are continuously harvested. Users can program production to halt during slow periods or increase during peak hours. Due to its remote structure, noise is minimized, so it can be used in kitchens or near customer seating without creating disruptions.

The Manitowoc Ice IYF1800C 161A ice maker head has a DuraTech® exterior, which provides corrosion resistance and features a clear coat that conceals unsightly fingerprints and dirt to ease cleaning. Users have full access to the foodzone by opening the hinged door, and key components such as the water trough, distribution tube, splash guard, water probe, and water pump can be removed for interior cleaning. Some parts are treated with AlphaSan® antimicrobial to slow bacterial growth between cleanings. Its front-mounted easyTouch® display features an accessible touchscreen design that provides diagnostic feedback, preventive maintenance updates, and temperature settings for smooth operation. Designed to fit on top of a separately sold ice storage bin, it measures 30 inches wide by 241⁄2 inches deep by 291⁄2 inches high.

Product Details

• Part of the Indigo NXT QuietQube series
• Maximum daily ice production: 1,660 lbs.
• AHRI-certified daily ice production: 1,440 lbs.
• Produces half-cube ice
• Half-cube ice size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• Air-cooled unit
• Requires separately sold CVD condensing unit, interconnecting refrigerant lines, and an ice storage bin
• Compatible with the Manitowoc Ice CVDF1400 261A air-cooled remote condensing unit, Manitowoc Ice LB1760 ice bin, and the Manitowoc Ice D970 ice bin

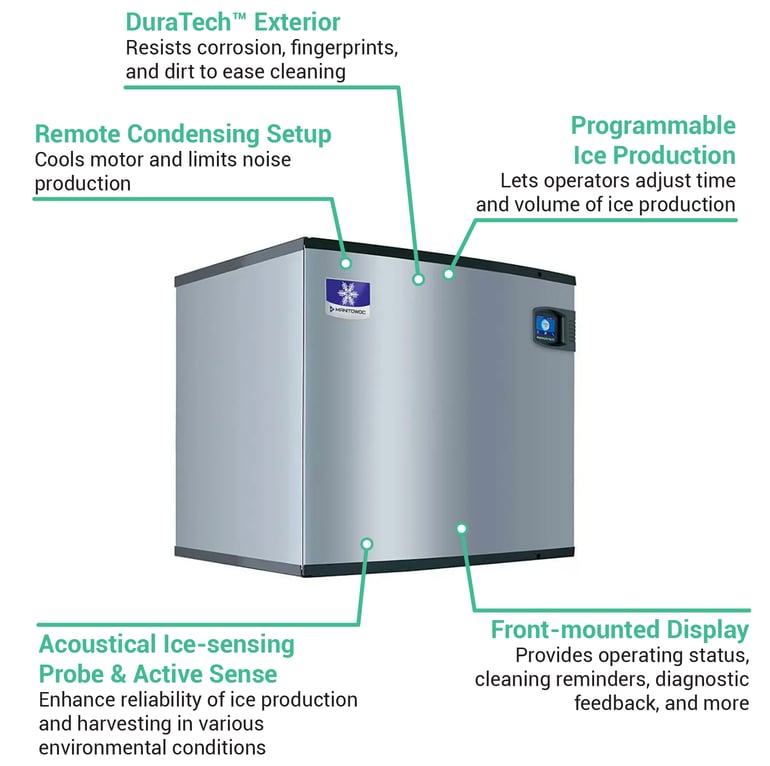

• Uses acoustical ice-sensing probes and active-sense technology
• Quiet operation due to remote design
• Programmable ice production based on time and volume
• DuraTech exterior
• Hung door provides access to removable components
• 24-hour preventive maintenance and diagnostic feedback
• easyTouch display
• Required ambient air temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required incoming water pressure range: 20-80 PSI

Dimensions & Utilities

• 30 in. W x 241⁄2 in. D x 291⁄2 in. H
• 1.1 A, 4.49 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYF1800C within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ QuietQube Ice Maker, cube-style, air-cooled, designed for remote refrigeration (condensing unit and lines sold separately), 30”W x 24-1/2”D x 29-1/2”H, production capacity up to 1660 lb/24 hours at 70°/50°F (1440 lb AHRI certified at 90°/70°F), DuraTech™ exterior, half-dice sized cubes, CVD Technology, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires an external cooling system (sold separately)

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires an external cooling system (sold separately)
