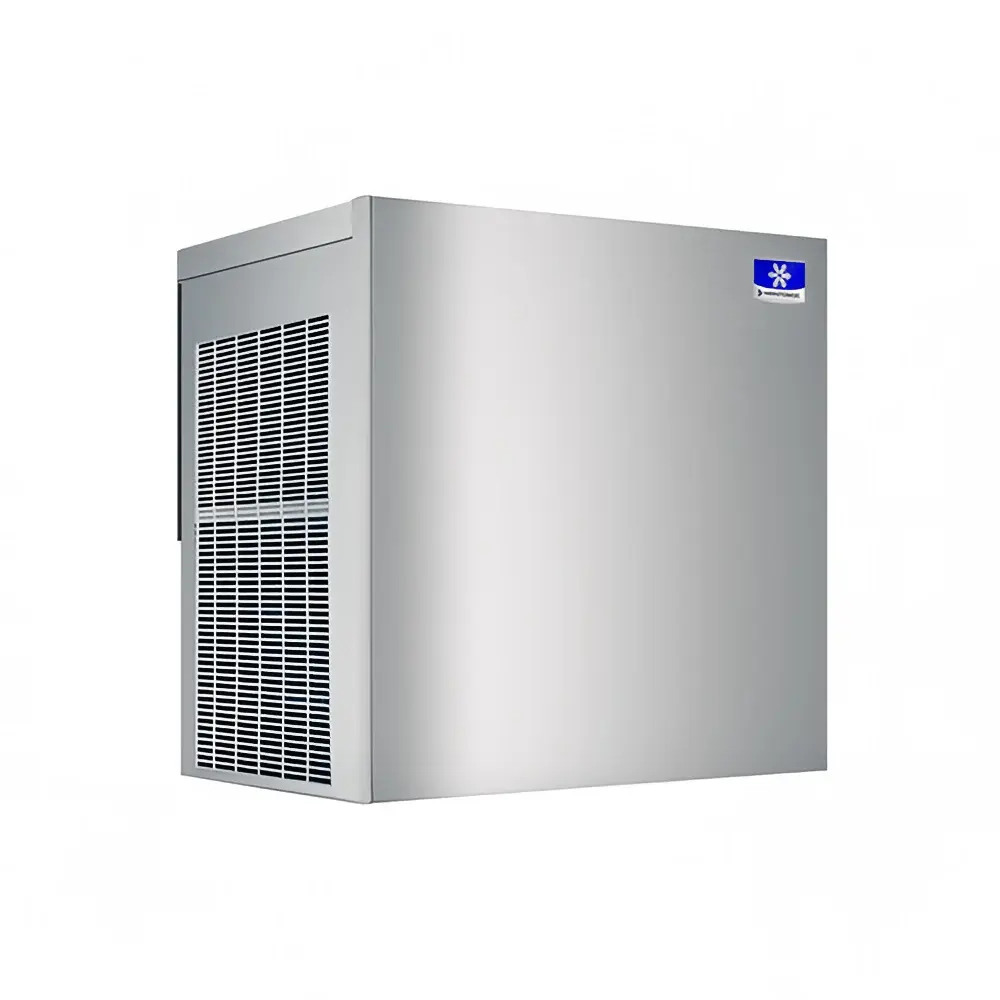

Manitowoc Ice RNP0620W 22" Nugget Ice Machine Head - 613 lb/24 hr, Water Cooled, 115v/1ph

Great for restaurants, convenience stores, and drive thrus, the Manitowoc Ice RNP0620W ice machine head produces as much as 633 pounds of nugget-style ice daily. This type of ice is ideal for blended beverages or iced drinks because of its 90 percent ice-to-water ratio. The unit's water-cooled compressor operates with R290A refrigerant—an eco-friendly, natural coolant that optimizes performance. To diminish the need for plumbing, this unit's condenser is self-contained, easing installation and providing placement flexibility.

Great for front- or back-of-house placement, the Manitowoc Ice RNP0620W ice machine head works great in ambient temperatures ranging from 50 to 110 degrees Fahrenheit; it can also be paired with a Multiplex beverage dispenser for convenient use. It measures 22 inches wide by 235/8 inches deep by 26 inches high and includes high-load, maintenance-free bearings that enhance reliability. Its exterior is constructed of stainless steel for durability and to present a look that matches existing equipment.

Product Details

• Produces nugget ice
• Water-cooled compressor
• Self-contained condenser
• Maximum daily ice production: 633 lbs.
• Can be paired with Multiplex beverage dispensers
• High-load, maintenance-free bearings
• R290A refrigerant
• Stainless steel exterior
• Ambient temperature range: 50-110 degrees F
• Water temperature range: 37-90 degrees F
• Water pressure range: 14-80 PSI
• 2,697 BTU

Dimensions & Utilities

• 115V/60hz/1ph,
• Maximum fuse size: 20 A
• Minimum circuit ampacity: 13.5 A
• 4.19 kWh/100 lbs at 70 degrees F
• Overall: 22 in. W x 235/8 in. D x 26 in. H

Product Features

*Free shipping on Manitowoc Ice RNP0620W within the 48 contiguous states.

From The Manufacturer

Ice Maker, nugget style, water-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 613 lb/24 hours at 70°/50° (508 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, 1 HP, NSF, cULus, CE, cETLus

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

Product made with Hydrocarbon Refrigerants

This unit produces nugget ice perfect for soft drinks, blended drinks, filling coolers, and dispensing.

This unit requires a second supply of water for cooling
