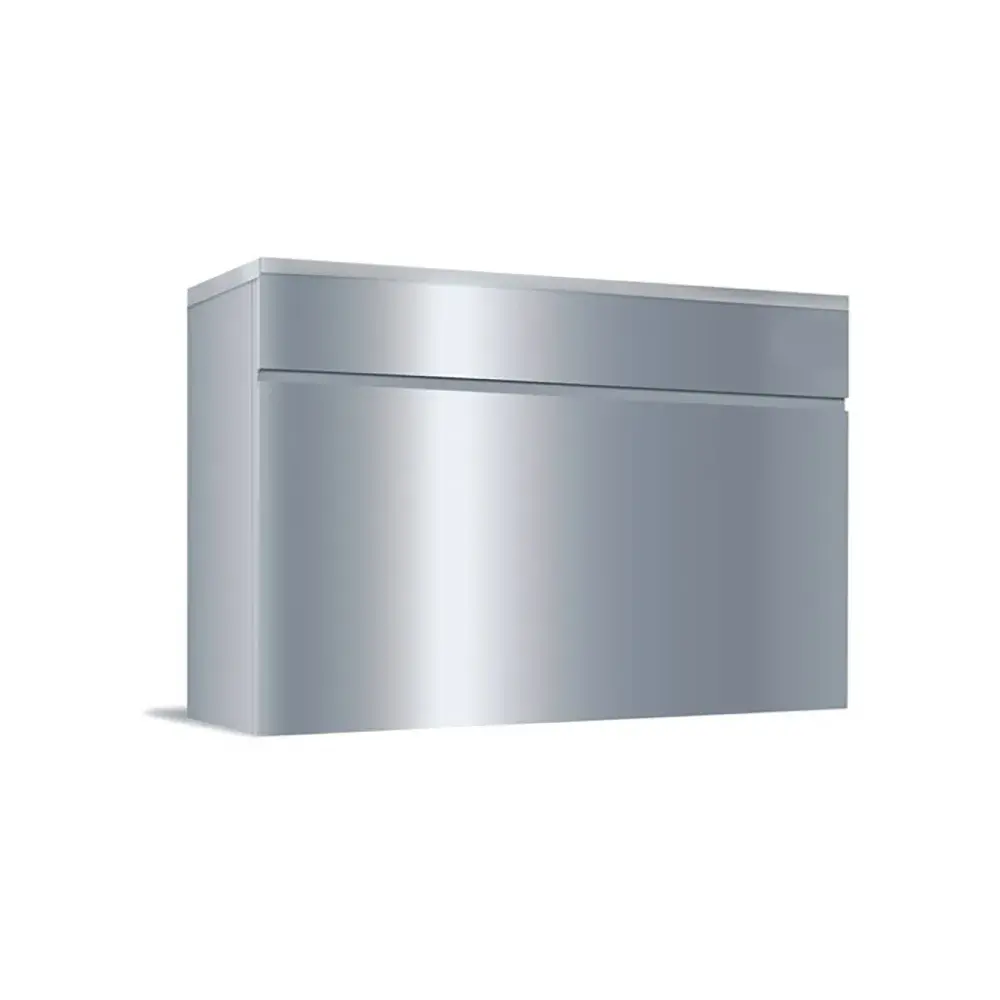

Manitowoc Ice SYT3000W 48" Quadzilla™ Half Cube Ice Machine Head - 3200 lb/24 hr, Water Cooled, 208-230v/3ph

The Manitowoc Ice SYT3000W Quadzilla™ half-cube ice machine head uses ice harvest technology to guide product into a bin or dispenser, which must be purchased separately for use. Great for use in soft drinks and cocktails, this unit creates half-size cubes of ice. This unit makes as much as 3,200 pounds of ice per day, but if operating conditions are less than ideal, it produces closer to 2,584 pounds of ice daily. It cools with R410A refrigerant, which is environmentally safe.

Constructed of stainless steel, the exterior of the Manitowoc Ice SYT3000W ice maker is durable enough to withstand commercial use, and it's resistant to rust and corrosion. To facilitate cleaning, the unit is coated with AlphaSan® antimicrobial that slows the growth of bacteria and reduces the spread of germs. The condenser is water cooled and self-contained, streamlining the installation process.

Product Details

• Part of the Quadzilla series
• 3,200-lb. maximum daily ice production
• 2,584-lb. AHRI-certified daily ice production
• Makes half-dice ice
• Ice dimensions: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• High-pressure water regulating valve
• Exterior made of durable stainless steel
• AlphaSan antimicrobial slows growth of bacteria
• Uses R410A refrigerant
• Water-cooled, self-contained condenser
• Ice harvest technology reduces energy use
• Dispenser or bin not included
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 45,000-BTU heat transfer capacity

Dimensions & Utilities

• 48 in. W x 31 in. D x 36 in. H
• 3.72 kW, 5 HP
• 208-230 V/60 Hz/3 ph

*Free shipping on Manitowoc Ice SYT3000W within the 48 contiguous states.

From The Manufacturer

Quadzilla™ Ice Maker, cube-style, water-cooled, self-contained condenser, high pressure water regulating valve, 48"W x 31"D x 36"H, production capacity up to 3200 lb/24 hours at 70°/50° (2584 lb AHRI certified at 90°/70°), stainless steel finish, half-dice size cubes, 5 HP, NSF, cULus

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit requires a second supply of water for cooling
