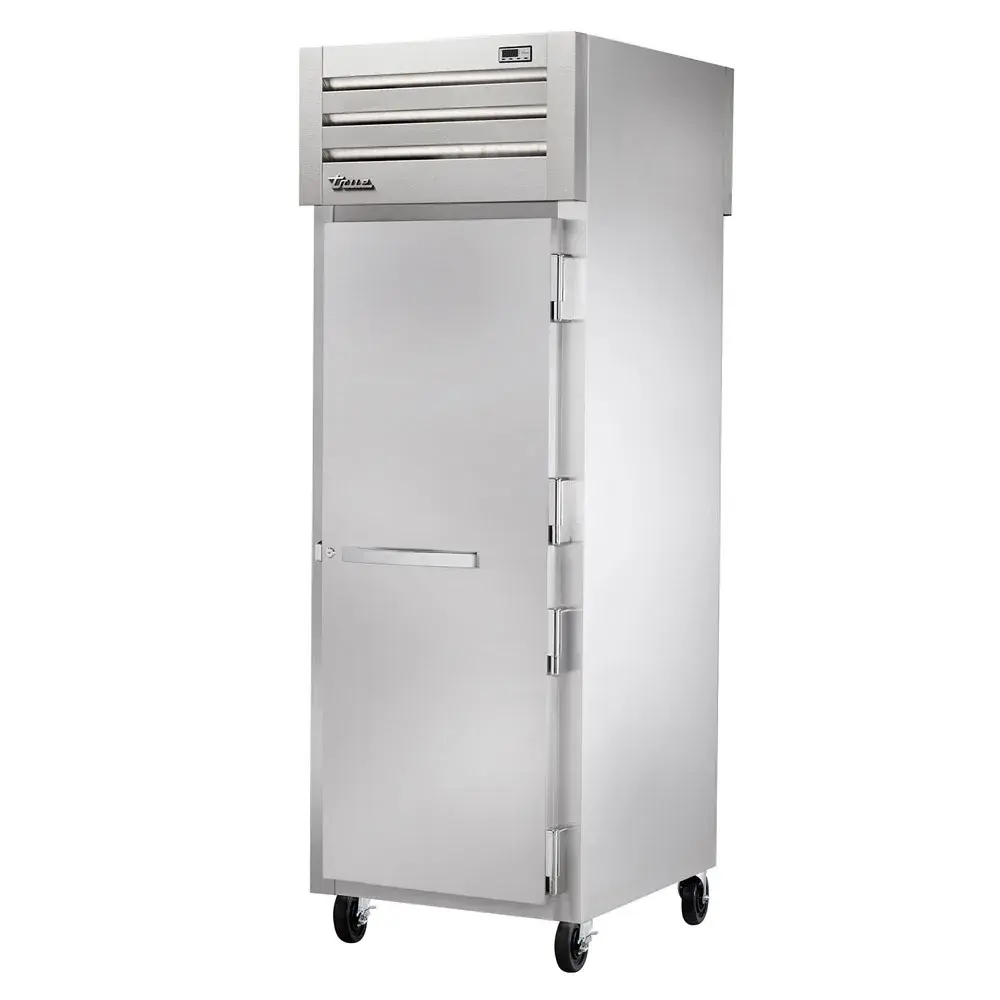

True STG1RPT-1S-1G-HC 27 1/2" One Section Pass Thru Refrigerator, (1) Glass Door, (1) Solid Door, Right Hinge, 115v

The True STG1RPT-1S-1G-HC SPEC SERIES® pass-thru refrigerator has foamed-in-place polyurethane insulation inside the cabinet to retain cold air. Its interior has corrosion-resistant side walls and back with a durable stainless steel floor and ceiling, while three PVC-coated wire shelves maximize storage shape. With matching aluminum sides, the exterior is constructed of stainless steel on the front. Doors on both the front and back enable a pass-thru design, with the front door being made of stainless steel and the back door being made of thermal-insulated glass.

The True STG1RPT-1S-1G-HC pass-thru refrigerator's doors are sealed with magnetic gaskets to prevent warm air from seeping inside the cabinet. To monitor the temperature, the unit features an external digital temperature display. So it is difficult for unauthorized users to tamper with, the refrigeration system is top mounted, and the self-contained capillary tube system uses R290 hydrocarbon refrigerant. To limit heat production, the evaporator and condenser fan motors move a consistent volume of air.

This unit's compressor fan reverses upon start up for 20 seconds to blow dirt, debris, and dust off the condensing coil. This technology is designed to maintain cold, consistent storage temperatures and minimize overall energy consumption. Even though it doesn’t eliminate routine preventative maintenance recommendations, this reversing technology improves the efficiency of the refrigeration system and lengthens the lifespan of the unit.

Product Details

• Part of the SPEC SERIES
• Exterior is constructed of a stainless steel front with matching aluminum sides
• Interior is constructed of aluminum side walls and back
• Durable stainless steel interior floor and ceiling
• Foamed-in-place, polyurethane insulation retains cold air
• Front door is constructed of durable stainless steel
• Back door is made of double-pane, thermal-insulated glass for visibility
• Digital temperature display enables monitoring
• 3 PVC-coated wire shelves provide product storage space
• Door stays open at 120 degrees
• 4 external cam-lift door hinges
• Magnetic door gaskets are removable
• Bolt-style door lock stops theft
• Pre-wired at factory and ready for final connection
• Interior LED lighting provides cabinet visibility

Refrigeration System

• Top-mounted, self-contained unit with a capillary tube system
• Temperature holding range: 33-38 degrees F
• Condenser and evaporator fan motors move a consistent volume of air to reduce heat production
• Fan motor runs in reverse for 20 seconds upon start up to blow dust and debris from condenser coil
• Evaporator located outside of food zone
• Uses R290 hydrocarbon refrigerant

Dimensions & Utilities

• 271⁄2 in. W x 391⁄8 in. D x 841⁄8 in. H
• 3.8 A, 1⁄4 HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration STG1RPT-1S-1G-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator, pass-thru, one-section, (1) stainless steel door front & (1) glass door rear with locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

Additional Product Information

This product includes a cord and plug

Product made with Hydrocarbon Refrigerants

Ships with casters that must be installed by end user

This item is made in the United States of America

This product comes with a NEMA 5-15P plug
