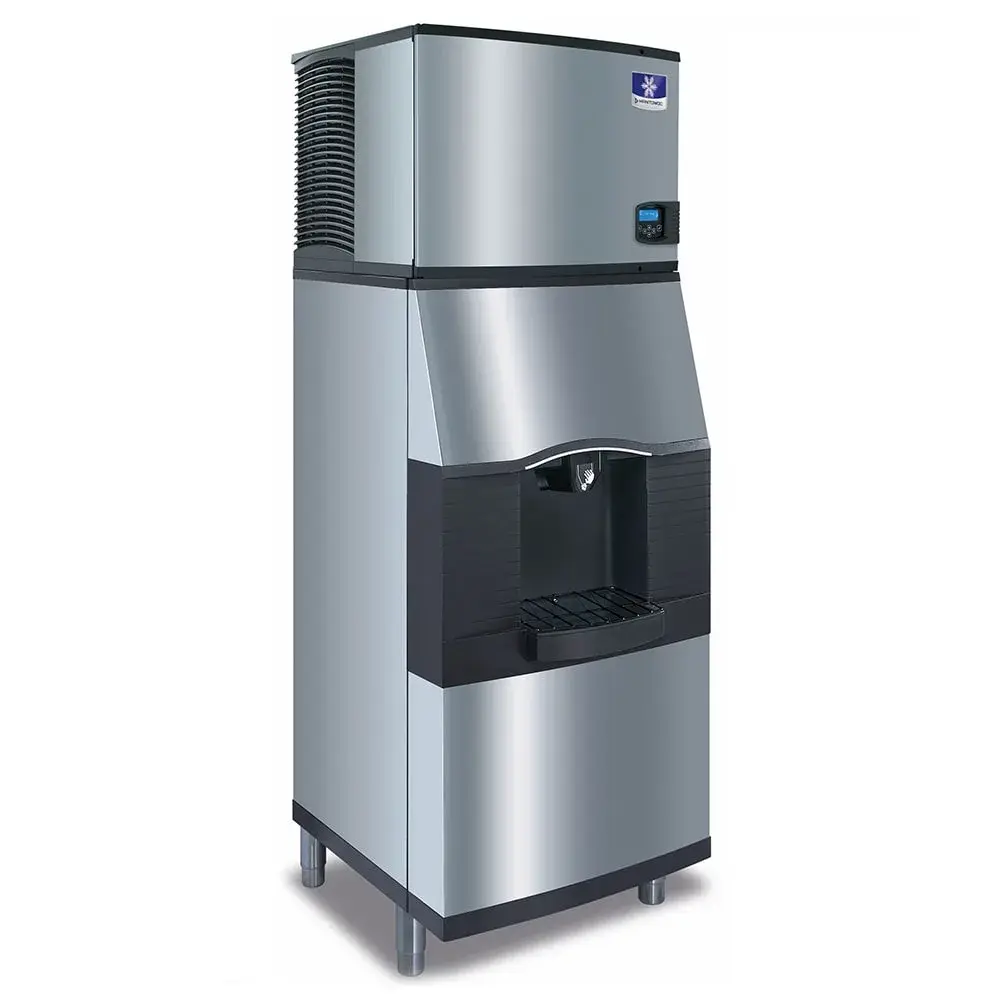

Manitowoc Ice IDT0620W/SPA162 530 lb Full Cube Ice Machine w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IDT0620W-161/SPA162 Indigo NXT™ ice maker with dispenser has a 530-pound daily production capacity. Operators can program this amount to best suit their application based on the time the unit is operational or by production volume. It makes full-cube ice, which melts slowly but is not suitable for smoothies since it does not break down well in a blender. An acoustical probe measures ice thickness, ensuring each production cycle is uniform.

Users can monitor the ice machine on its touchscreen display, and the unit automatically runs 24-hour preventive maintenance. Its dispenser has a 120-pound storage capacity since it is designed to fill buckets in hotels and motels. Spilling is reduced by the dispenser’s rocking chute mechanism, and ice that spills over is caught in the oversized drip tray.

Ice Maker Details

• Part of the Indigo NXT series
• 530-lb. daily ice production capacity
• 450-lb. AHRI-certified daily ice production capacity
• Programmable ice production can be based on operation time or daily volume
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Ice thickness is consistently measured by an acoustical sensing probe
• easyTouch® display for energy, service, and menu settings
• 24-hr. preventive maintenance and diagnostic feedback
• Swing-out food zone door provides convenient component access
• Removable sensing probes, distribution tube, water trough, and curtain
• Integral components have AlphaSan® antimicrobial agent
• DuraTech™ clear coating on the stainless steel exterior resists corrosion and smudges
• Water-cooled motor
• Uses R410A refrigerant
• 5,400 average BTU; 6,300 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Dispenser Details

• 120-lb. capacity
• Fills buckets in resorts and hotels
• Rocking chute mechanism stops spills while dispensing
• Drain pan has an oversized design that catches overflow
• Built-in agitator
• DuraTech exterior

Product Features

Dimensions and Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 11.6 A, 4.13 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • 22 in. W x 31.19 in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

*Free shipping on Manitowoc Ice IDT0620W/SPA162 within the 48 contiguous states.

From The Manufacturer

IDT-0620W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 530 lb/24 hours at 70°/50° (450 lb AHRI certified at 90°/70°), DuraTech™ exterior, regular dice size cubes, R410A refrigerant, NSF, cULus, CE

SPA-162: Vending Ice Dispenser, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

This unit dispenses ice only

This unit requires a second supply of water for cooling

This product comes with a NEMA 5-15P plug
