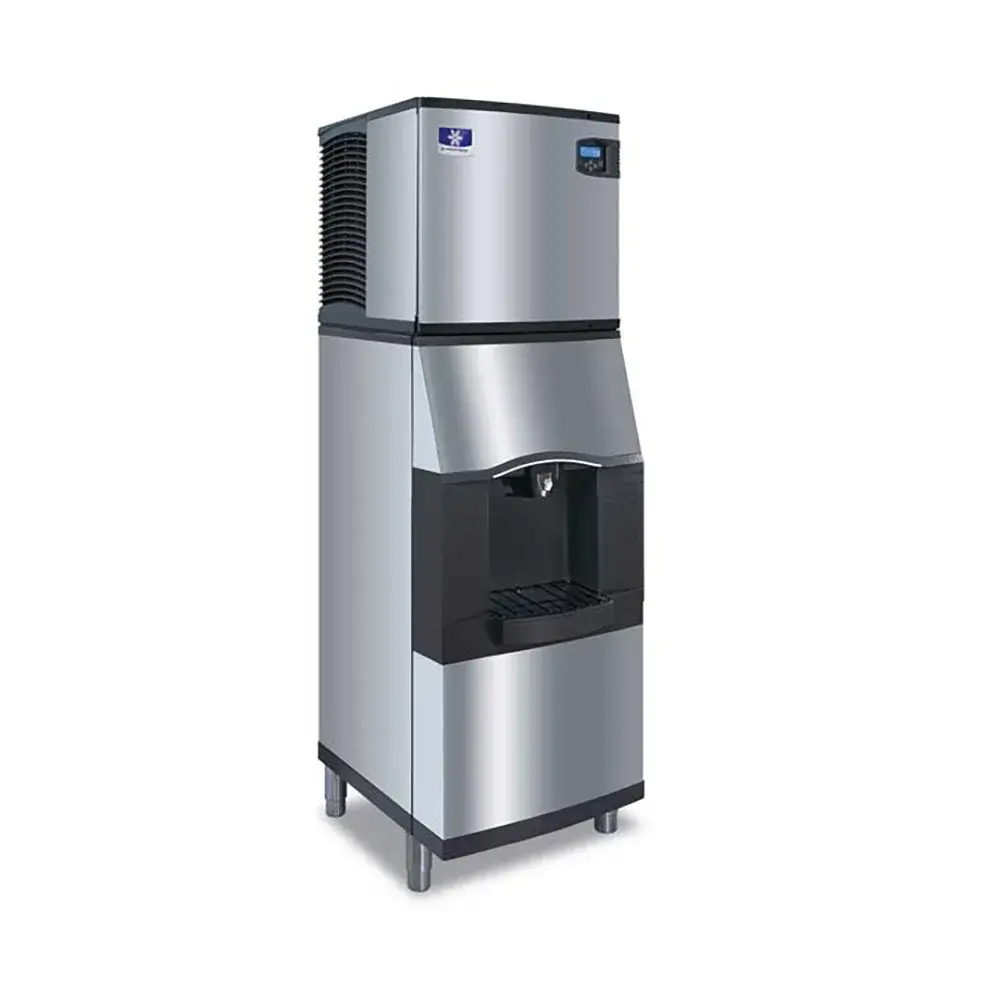

Manitowoc Ice IDT1200A/SFA292 1196 lb Full Cube Ice Machine w/ Water & Ice Dispenser - 180 lb Storage, Bucket Fill, 208/230v/1ph

The Manitowoc Ice IDT1200A-261/SFA292 Indigo NXT™ ice maker with dispenser has a 1,196-pound maximum daily production that can be adjusted to best suit a specific operation. It makes large full-cube ice that melts slowly and is monitored by a sensing probe that measures thickness before it drops into the dispenser.

Operators can find out more about the ice machine head by accessing energy and service information on the touchscreen display. Servicing internal ice maker components is aided by the hinged door's swing-out design, and some of these parts are removable for cleaning. The Manitowoc Ice IDT1200A-261/SFA292 ice machine with dispenser can hold 180 pounds and is made to fill large containers. It also dispenses water, and its rocking chute dispenser mechanism helps prevent spilling. With its oversized design, the drain pan catches most overflow.

Ice Maker Details

• Part of the Indigo NXT series
• 1,196-lb. daily ice production capacity
• 950-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical ice sensing probe measures the thickness of ice with sound waves
• Production can be based on ice volume or time of operation
• User-friendly easyTouch® display
• 24-hr. preventive maintenance and diagnostics
• Hinged food zone door swings out, providing access to internal parts
• Removable components facilitate cleanup
• AlphaSan® antimicrobial technology reduces the growth of bacteria
• DuraTech™ clear coat over the stainless steel exterior hides smudges and resists rust
• Air-cooled motor
• Uses R410A refrigerant
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Dispenser Details

• 180-lb. capacity
• Built-in water valve
• Fills large containers
• Rocking chute dispenser mechanism minimizes spilling
• Large drain pan catches ice if it overflows
• Built-in agitator
• DuraTech exterior

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 14.2 A, 4.8 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

*Free shipping on Manitowoc Ice IDT1200A/SFA292 within the 48 contiguous states.

From The Manufacturer

IDT-1200A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1196 lb/24 hours 70°/50° (950 lb AHRI certified at 90°/70°), DuraTech™ exterior, regular dice size cubes, NSF, cULus, CE

SFA-292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces full-cube ice ideal for soft drinks, bagging, bulk cooling, and filling coolers.

Also called self-contained, this compressor type uses air for cooling

This unit dispenses both ice and water

This product comes with a NEMA 5-15P plug
