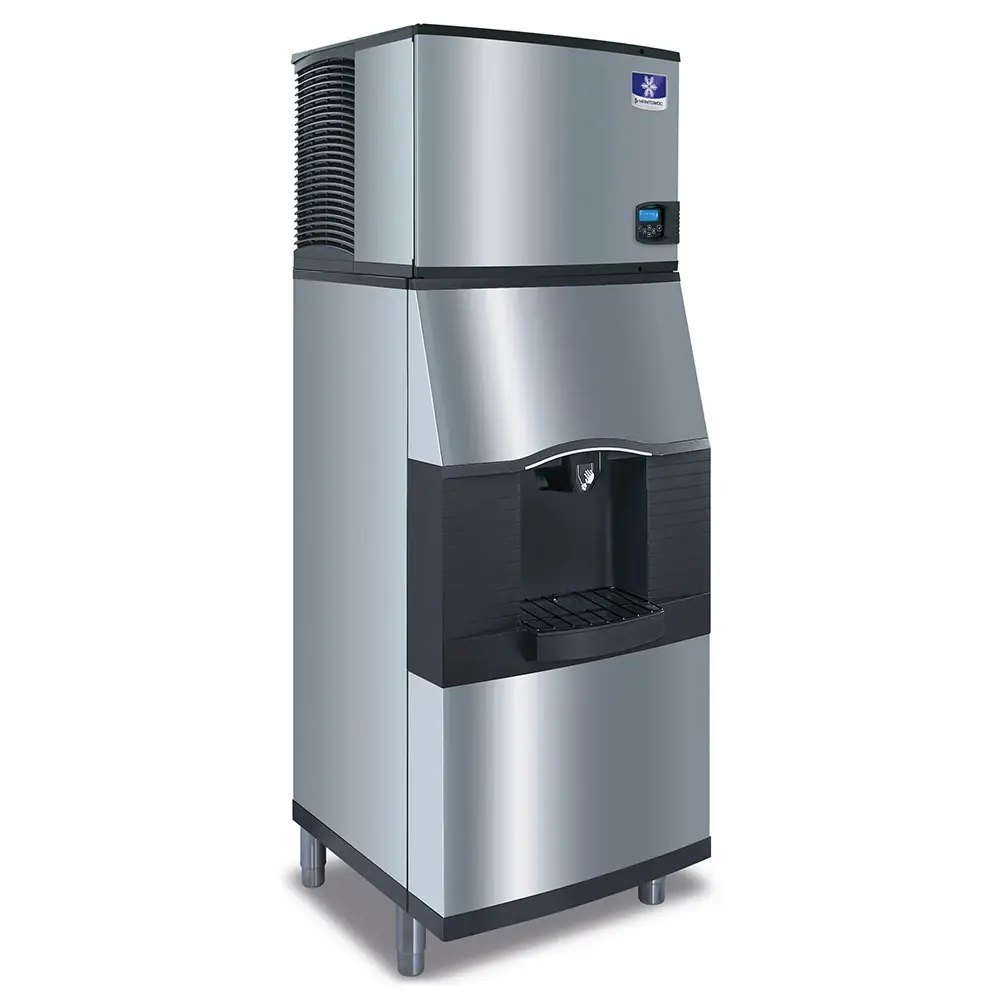

Manitowoc Ice IYT0420A/SFA192 460 lb Half Cube Ice Machine w/ Water & Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IYT0420A-161/SFA192 Indigo NXT™ commercial ice machine and dispenser features troubleshooting diagnostics and 24-hour maintenance, assisting the user in making sure their machine runs properly. Its daily production can be programmed by volume or hours of service, so customers can make the amount of ice they need, when they need it. An ideal choice when paired with beverages, the head produces half-dice ice, and the cube thickness is monitored by an acoustical ice-sensing probe for maximum product consistency.

The Manitowoc Ice IYT0420A-161/SFA192 floor model ice and water dispenser fits well in hotels, offices, or lobbies where staff may wish to have water and ice available. Keeping the rest of the ice inside the chamber, the rocking chute mechanism controls the amount of ice that is dispensed, cutting down on waste. Any escaping ice is collected in the dispenser’s enlarged drain pan before it can fall to the floor and melt. With a built-in agitator, the chamber keeps ice broken up and ready to dispense, maximizing usable product, while stain and smudge protection is provided by a DuraTech™ exterior with a stainless finish.

Ice Maker

• Part of the Indigo NXT series
• 460-lb. maximum daily ice production
• 375-lb. AHRI-certified daily ice production
• Acoustical ice-sensing probe oversees cube thickness
• Production can be programmed by volume and hours of operation
• DuraTech exterior
• Intelligent troubleshooting diagnostics
• easyTouch® display for convenient machine operation
• Produces half-dice ice
• Half-dice cube size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
• Air-cooled system
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Ideal clearances: 5 in. at back, 12 in. at top and side
• R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU

Product Features

Dispenser

• Holds containers 101⁄2 in. high or smaller
• 120-lb. AHRI-certified bin capacity
• Rocking chute mechanism regulates ice flow during dispensing
• Large drain pan catches overflow ice
• Includes water valve
• Built-in agitator ensures ice doesn’t stick together
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 241⁄2 in. D x 211⁄2 in. H
  • 11.3 A, 5.4 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 22 in. W x 313⁄16 in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT0420A/SFA192 within the 48 contiguous states.

From The Manufacturer

IYT-0420A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 460 lb/24 hours at 70°/50° (375 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R410A, NSF, cULus, CE, ENERGY STAR®

SFA-192: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22"W x 31-3/16"D x 54"H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2" high, stainless steel exterior with vinyl trim, accepts 22" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling

This unit dispenses both ice and water

This product comes with a NEMA 5-15P plug
