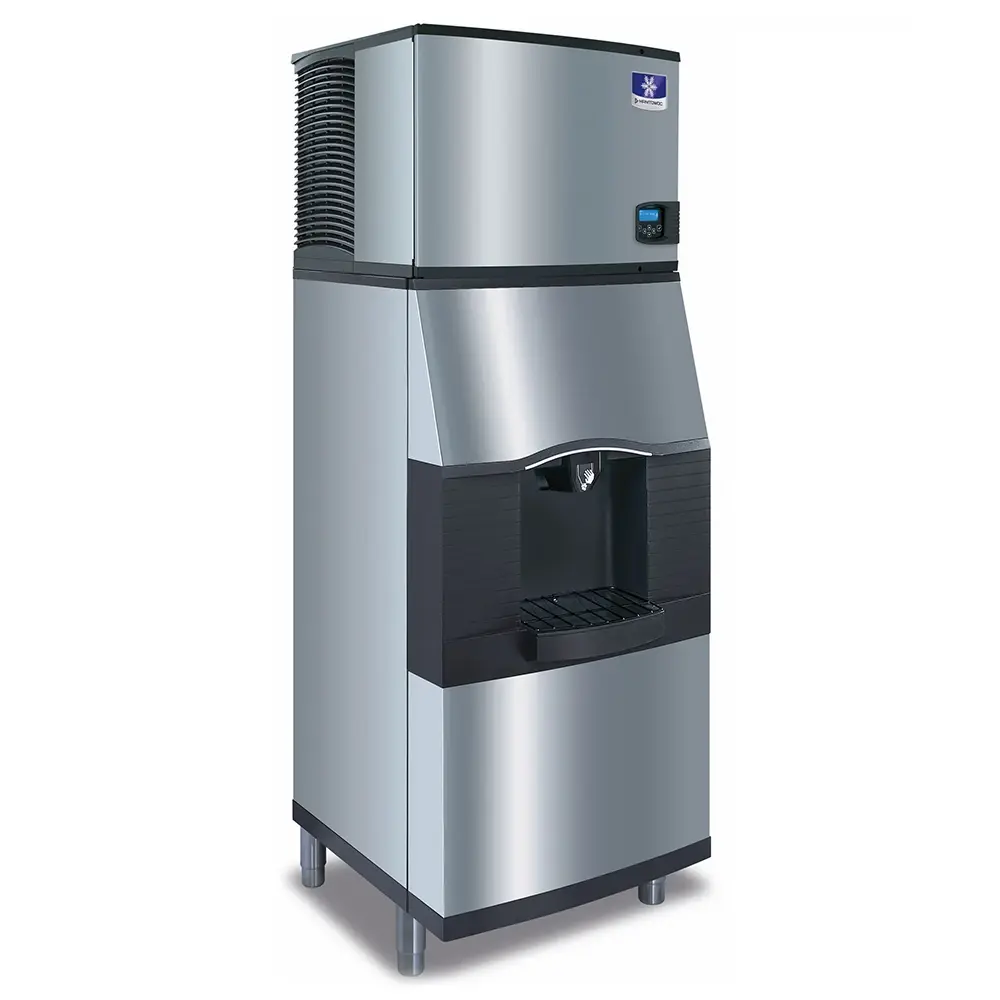

Manitowoc Ice IYT0450W/SPA312 470 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0450W-161/SPA312 Indigo NXT™ ice maker with dispenser can produce 470 pounds of ice and store 180 pounds of ice. Production can be set to volume or time of day, and the unit has touchscreen icons to simplify use. Before ice is released from the evaporator plate, a probe checks its thickness, while components that contact water in the head are built with AlphaSan® antimicrobial agent. Diagnostics run every 24 hours, ensuring the unit is working properly.

The stainless steel exterior has a clear coat that hides smudges, while the dispenser fills ice buckets in hotels and resorts. It has a built-in agitator and a drain pan to collect excess ice. A chute dispense mechanism prevents ice overflow, and the Manitowoc IYT0450W-161/SPA312 ice maker with dispenser has removable parts for cleaning.

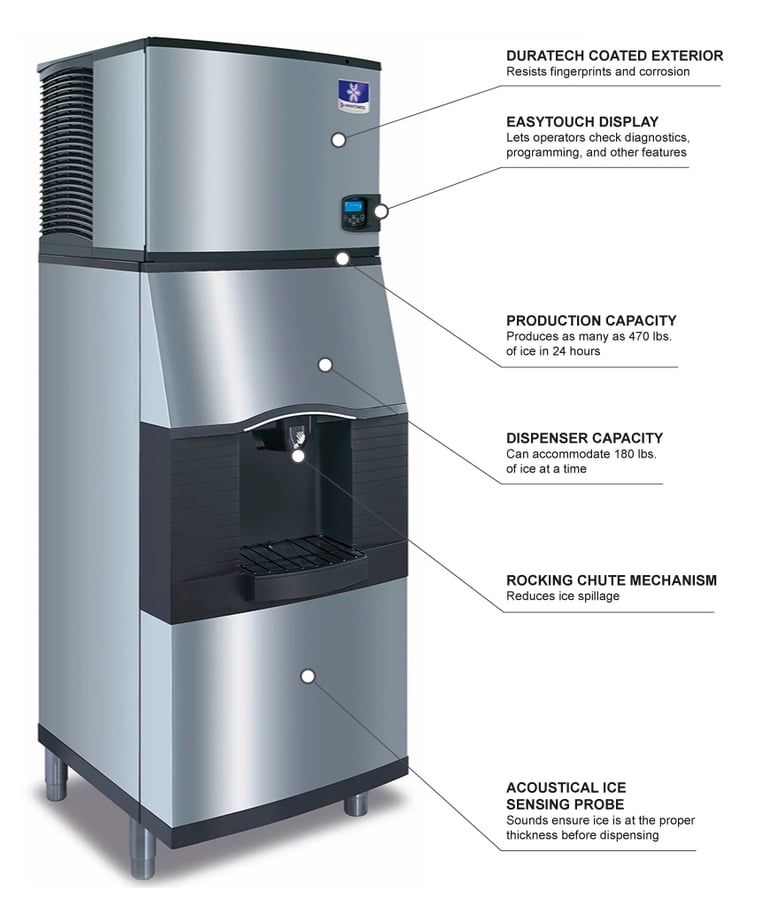

Ice Machine Head

• 470-lb. ice production capacity
• 420-lb. AHRI-certified production capacity
• Ice cube size: 0.375 in. x 1.125 in. x 0.875 in.
• easyTouch display uses touchscreen icons
• Program ice production by volume or time of day
• Hinged front door
• Removeable water trough, distribution tube, curtain, water probe, and water pump
• AlphaSan technology is built into components to slow bacteria growth
• Runs daily diagnostics
• Ice thickness is measured by an Acoustical probe measures ice thickness
• Clear coat called DuraTech resists fingerprints
• Produces half dice ice
• Water-cooled motor
• Uses R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 3,800
• Peak BTU per hour: 6,000

Product Features

Ice Dispenser

• 180-lb. ice storage capacity
• Chute dispense mechanism controls ice flow
• Built-in agitator
• Drain pan holds ice overflow
• DuraTech clear coat

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 32 in. D x 62 in. H
  • 11.2 A, 4.7 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT0450W/SPA312 within the 48 contiguous states.

From The Manufacturer

IYT-0450W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 470 lb/24 hours at 70°/50° (420 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes,R410A refrigerant, NSF, cULus, CE

SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit dispenses ice only

This unit requires a second supply of water for cooling

This product comes with a NEMA 5-15P plug
