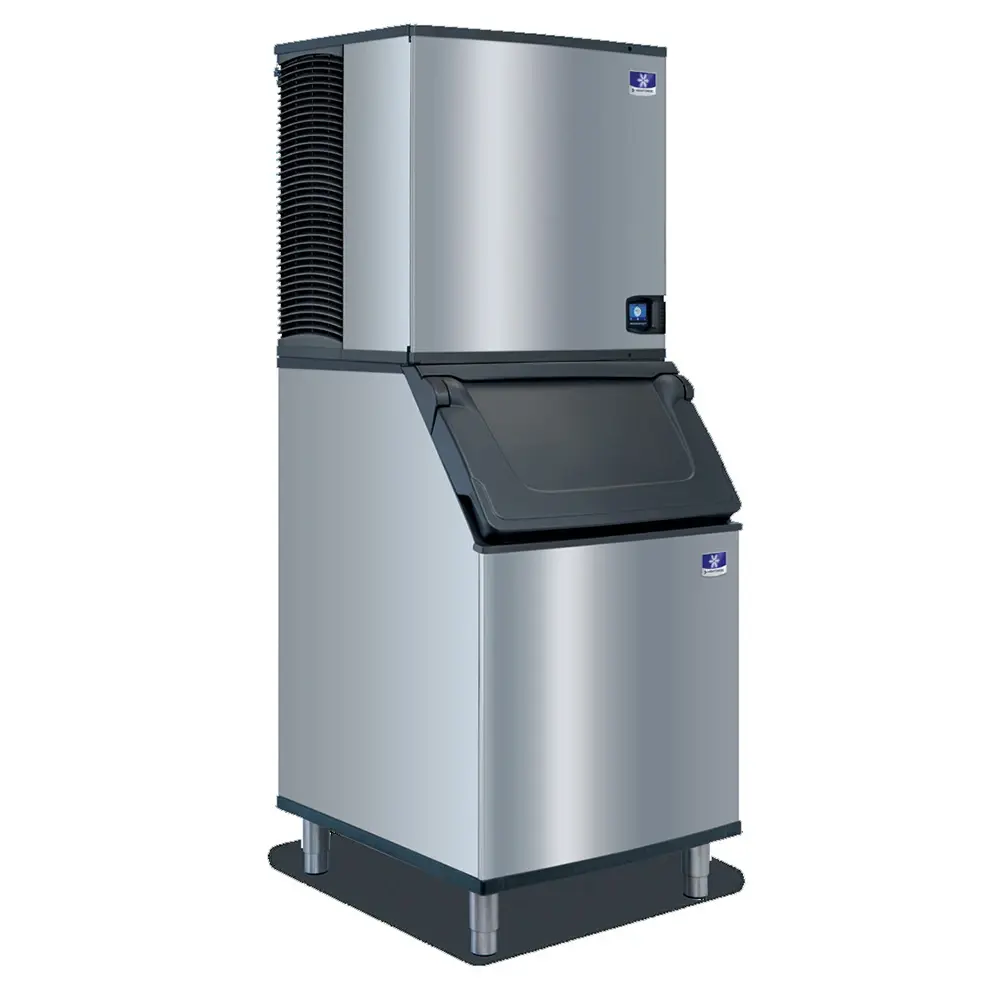

Manitowoc Ice IYT1200A/SFA292 1213 lb Half Cube Ice Machine w/ Water & Ice Dispenser - 180 lb Storage, Bucket Fill, 208/230v/1ph

The Manitowoc Ice IYT1200A-261/SFA292 Indigo NXT™ ice maker with dispenser has an air-cooled condensing unit that uses a fan to blow cool air over the coils, chilling the refrigerant and removing heat from the evaporator. This process freezes water and makes half-cube ice, which is ideal for drinks and bagged applications. It takes up more space in cups and saves money on beverages but melts more quickly than full cubes. In 24 hours, this ice machine can make 1,213 pounds, an amount that can be programmed based on desired volume or operation time.

A touchscreen display facilitates ice machine operation, and removable components support cleaning. Select parts have an antimicrobial agent that slows bacteria and fungus growth. The storage capacity in this Manitowoc Ice IYT1200A-261/SFA292 ice maker with dispenser is 180 pounds, and its dispenser is compatible with large containers like hotel buckets with a water valve for dispensing into glasses. A rocking chute mechanism prevents ice from spilling, and a large drain tray collects fallen ice to prevent messes.

Ice Maker Details

• 1,213-lb. daily ice production capacity
• 950-lb. AHRI-certified daily ice production capacity
• Ice production volume and time are programmable
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Acoustical sensing probe ensures consistent thickness
• Air-cooled condenser
• easyTouch® display shows alerts, messages, and operating status
• Hinged door has a swing-out design for convenient component access
• Removable water trough, distribution tube, water probe, curtain, and water pump
• AlphaSan® antimicrobial agent reduces fungus and bacteria on select components
• Stainless steel exterior is coated in a clear DuraTech™ finish for corrosion and grime resistance
• Uses R410A refrigerant
• Part of the Indigo NXT series
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Dispenser Details

• 180-lb. capacity
• Built-in water valve
• Designed to fill hotel buckets and other large containers
• Rocking chute dispenser mechanism confines spills
• Oversized drain pan keeps ice contained in the dispensing area
• Built-in agitator breaks up ice clumps
• DuraTech finish protects the stainless steel exterior

Product Features

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 14.2 A, 4.75 kW
  • 208-230 V/60 Hz/1 ph
• Ice Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT1200A/SFA292 within the 48 contiguous states.

From The Manufacturer

IYT-1200A: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1213 lb/24 hours at 70°/50° (950 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, CE

SFA-292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11" high, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling

This unit dispenses both ice and water

This product comes with a NEMA 5-15P plug

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

Also called self-contained, this compressor type uses air for cooling
