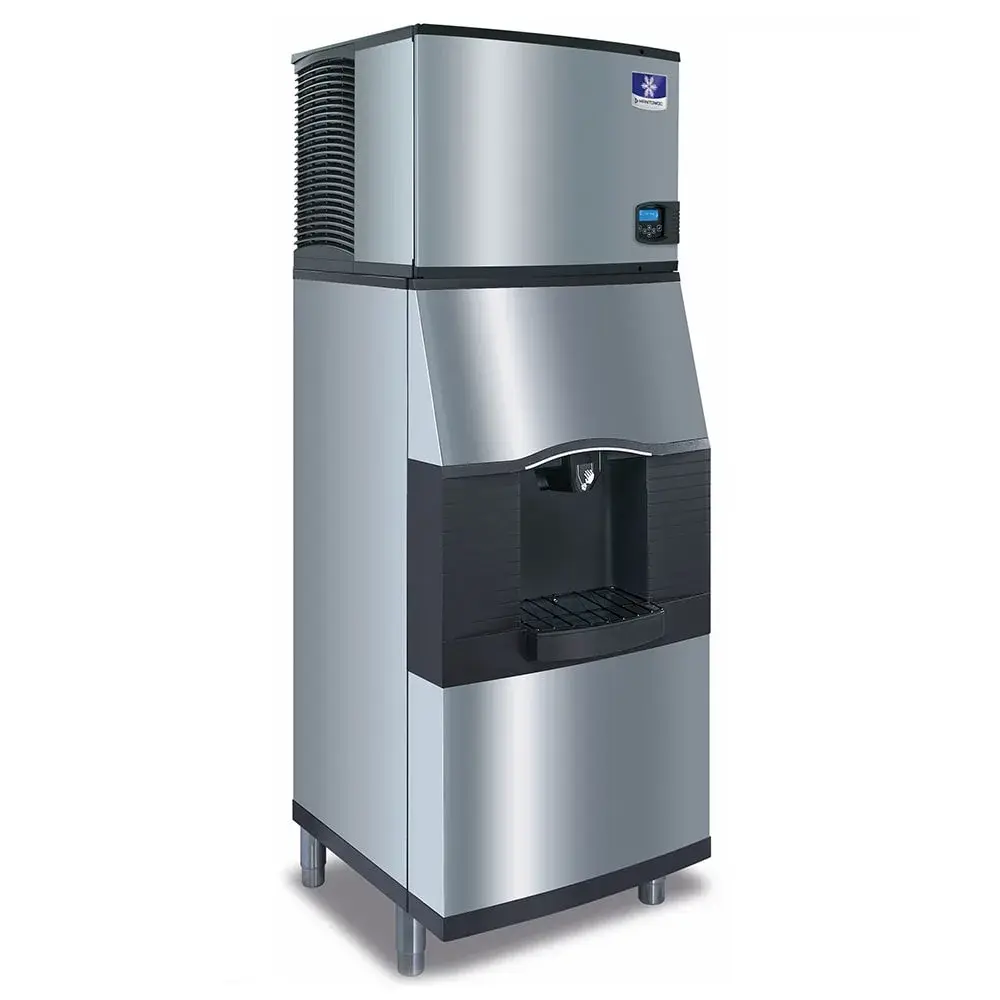

Manitowoc Ice IYT1200W/SPA312 1138 lb Half Cube Ice Machine w/ Ice Dispenser - 180 lb Storage, Bucket Fill, 208/230v/1ph

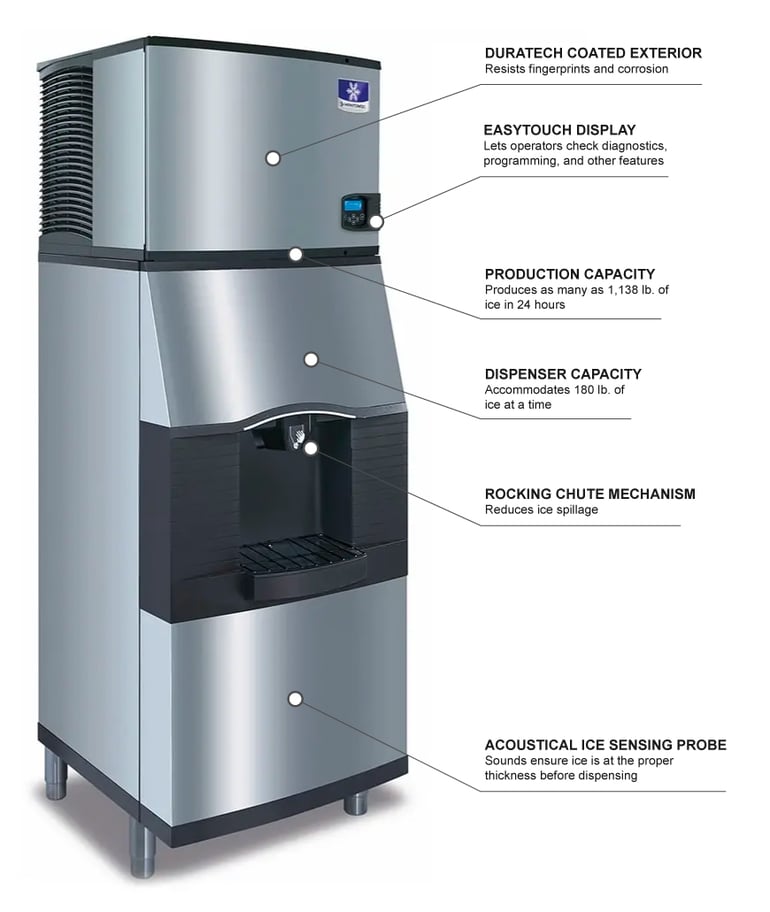

The Manitowoc IYT1200W-261/SPA312 Indigo NXT™ ice machine and dispenser has an icon-based control panel that offers straightforward operation. It can produce 1,138 pounds of ice in a day if ambient air and incoming water temperatures are ideal, but production can be altered to fit a specific time of day or volume in the dispenser. An acoustic probe monitors ice thickness with sound waves, preventing cubes from dropping until they are the right size. Specific components can be removed for cleaning, and parts in the food zone are made with antimicrobial protection to reduce bacteria growth between cleanings.

The dispenser has quick on/off activation and a built-in agitator that keeps ice from bridging or clumping. Spills are prevented with a rocking chute dispense mechanism, and when they do occur, a drain pan collects excess to contain the mess. The Manitowoc IYT1200W-261/SPA312 ice machine and dispenser is constructed of durable stainless steel and has a clear coat over its exterior that protects it from damage.

Ice Maker Details

• 1,138-lb. ice production capacity
• 965-lb. AHRI-certified ice production capacity
• Icon-based control panel
• Ice production is adjustable based on the time of day or bin volume
• Removable water trough, distribution tube, curtain, water probe, and water pump
• AlphaSan® antimicrobial agent on select components lengthens the time between cleanings
• 24-hr. preventive diagnostics
• Thickness of the ice is monitored by an acoustical probe
• DuraTech® coating over stainless steel provides protection from scratches and scuffs
• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Uses R410A refrigerant
• 16,200 average BTU; 19,100 maximum BTU
• Required ambient temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Dispenser Details

• 180-lb. storage capacity
• Accommodates buckets for hotels and resorts
• Prevent spills with the rocking chute dispense mechanism
• Quick on/off activation
• Chunks of ice are broken up by the built-in agitator
• Messes are confined to the drain pan
• Exterior is coated with DuraTech to maintain a clean appearance

Dimensions and Utilities

• Ice Maker
• 30 in. W x 24.5 in. D x 29.5 in. H
• 13.4 A, 4 kW
• 208-230 V/60 Hz/1 ph
• Dispenser
• 30 in. W x 32 in. D x 60.5 in. H
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

*Free shipping on Manitowoc Ice IYT1200W/SPA312 within the 48 contiguous states.

From The Manufacturer

IYT-1200W: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1138 lb/24 hours at 70°/50° (965 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, NSF, cULus, CE

SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30"W x 32"D x 82"H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22" or 30" dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Product does not come with plug and must be hardwired to operate

This unit produces half-cube ice excellent for soft drinks, blended drinks, ice dispensing, and bagging.

This unit dispenses ice only

This unit requires a second supply of water for cooling

This product comes with a NEMA 5-15P plug
